Process NMR

Comparisons of Benchtop 60 MHz and 300 MHz NMR Data

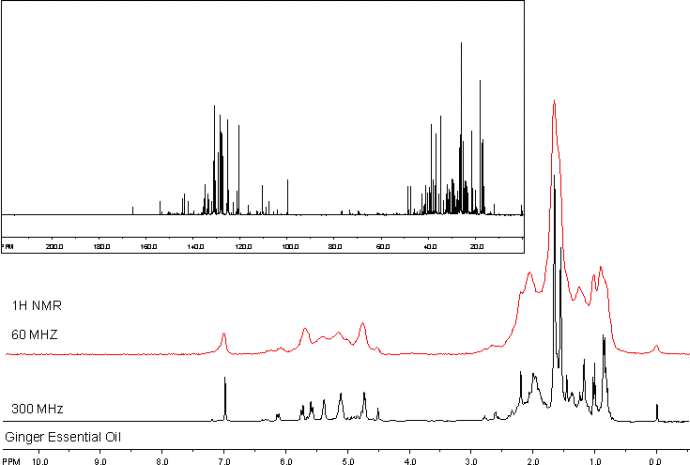

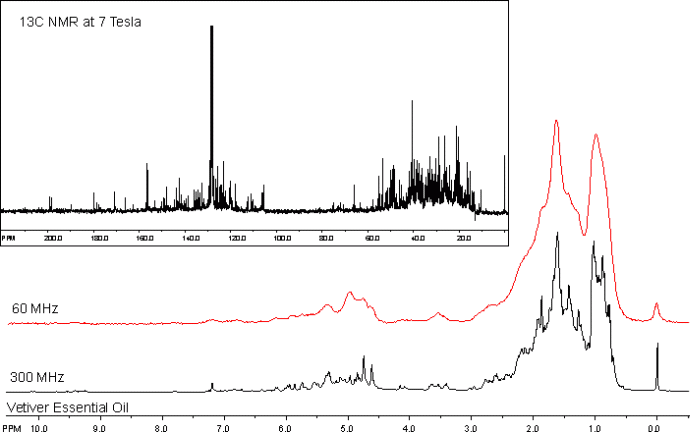

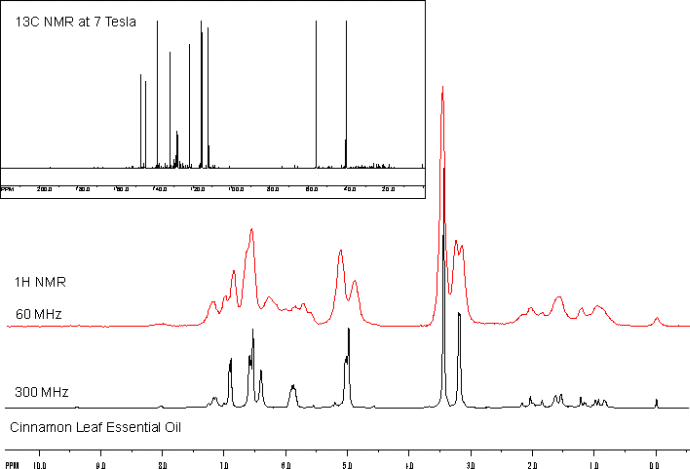

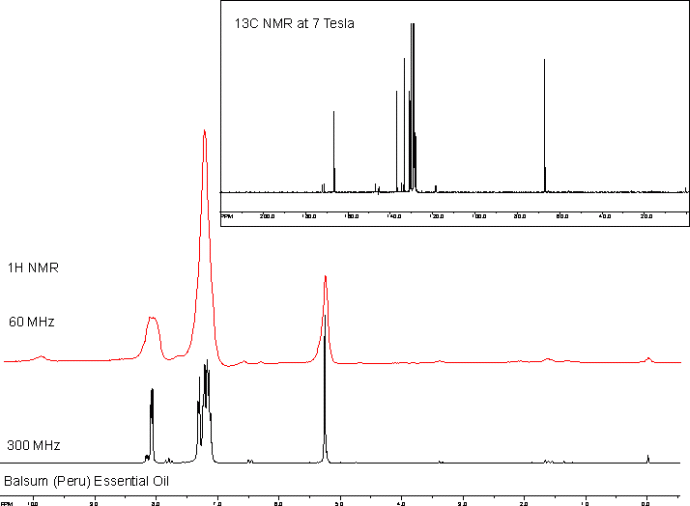

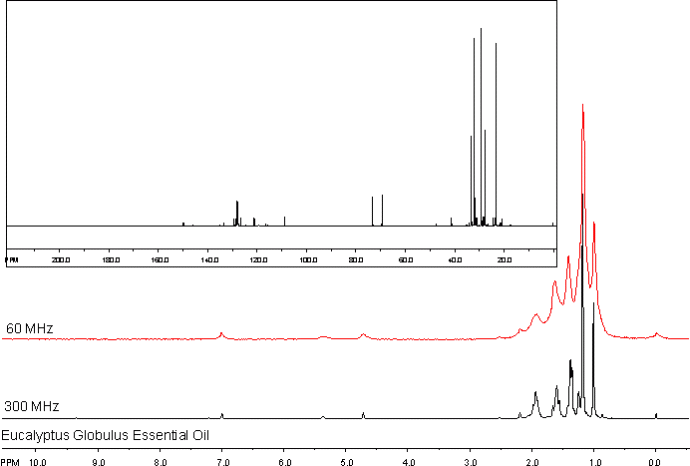

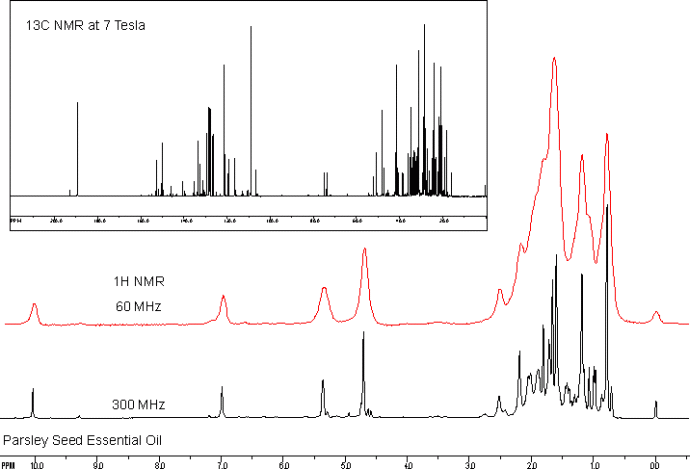

A comparison of non-spinning 60 MHz NMR data compared with that obtained on a superconducting 300 MHz system. The 1H and 13C NMR of 10 Essential Oils are given below - the essential oils are:

Copaibo Balsam, Dill Weed, Citronella, Parsley Seed, Cinnamon Leaf, Balsam (Peru), Eucalyptus Globulus, Ginger, Petitgrain, and Vetiver.

We currently have 300+ Essential Oils in a Database comprising 1H, 13C, COSY, HETCOR, DEPT, FTIR-ATR data.

Comparisons of Benchtop 60 MHz and 300 MHz NMR Data
Comparisons of Benchtop 60 MHz and 300 MHz NMR Data
Comparisons of Benchtop 60 MHz and 300 MHz NMR Data
Comparisons of Benchtop 60 MHz and 300 MHz NMR Data
Comparisons of Benchtop 60 MHz and 300 MHz NMR Data
Comparisons of Benchtop 60 MHz and 300 MHz NMR Data
Comparisons of Benchtop 60 MHz and 300 MHz NMR Data
Comparisons of Benchtop 60 MHz and 300 MHz NMR Data
Comparisons of Benchtop 60 MHz and 300 MHz NMR Data
Comparisons of Benchtop 60 MHz and 300 MHz NMR Data

For further details on NMR analysis of essential oils please contact John Edwards
